Maintaining the lightweight status with all of the essential features, the Razor 17’5" single axle van is still the immediate getaway van. Ideal for couples or solo travellers, this van caters for the discerning customer wanting the added luxuries to compliment their travel and adventures.

Download Brochure

*Layout details may vary without notice due to minor upgrades.

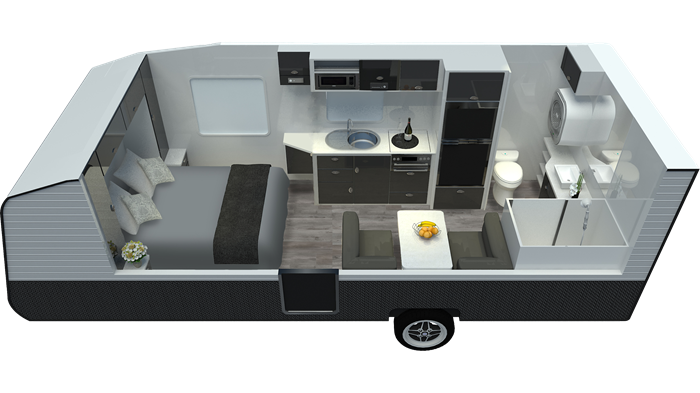

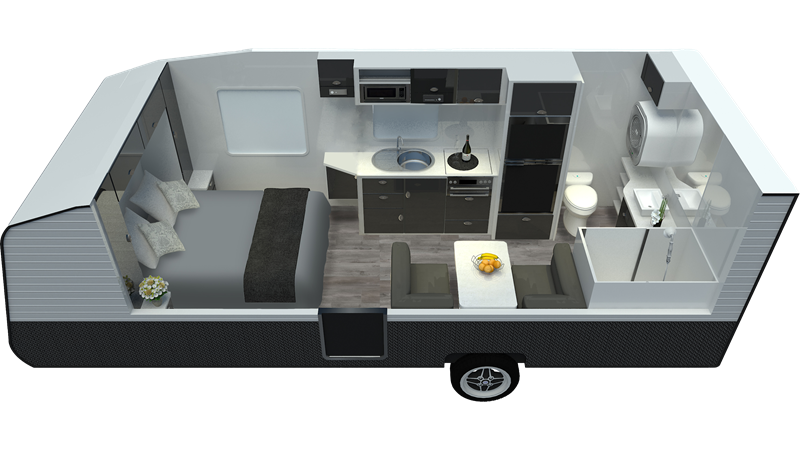

Floorplan & Brochure Downloads

* L Shape lounge option available

Sleeps 2

Touring Caravan

razor-175-l-shape-lounge
Download Brochure

Dimensions & Weights

  17' 5" SINGLE AXLE
(175 CAFW)
DIMENSIONS (MM)
Total Length 7650
Height 3000
Width (incl. Awning) 2450
WEIGHTS (KG)
Aggregate Trailer Mass (ATM) 2650
Gross Trailer Mass (GTM) 2440
Tare 2150
TowBall 210

Specifications

  • 6'8" Internal Ceiling Height
  • Storage Compartment to Bedside
  • High-Wear Vinyl Floating Floor Covering
  • Microfibre ‘Leather-Look’ Extended Upholstery
  • Fully Enclosed, Full-Height, Fibreglass Shower
  • Lightweight Solid Plywood Interior with Sleek Modern Look
  • Modern Interior Décor with Multiple Choices
  • Dual 9kg Gas Bottles
  • Dual 95Litre Water Tanks with Galvanised Protection and Drain Tap
  • Extractor Fan & Hatch Fitted Over Toilet and Shower
  • 3/4 Tunnel to Models where Front Boot is Fitted
  • Extended Bench top with Recessed Stove
  • Cutlery Tray fitted to kitchen Drawer
  • Lift-up underbed storage
  • Common Outlet for all Wastewater
  • Gas Bayonet
  • Bike Racks Fitted to Family Layouts
  • Breaksafe breakaway safety system
  • Electric Brakes to All Wheels
  • Gas regulator and A-frame tap protection
  • Fire Extinguisher and Smoke Detector
  • Supergal Chassis
  • Drop-down Corner Stabilizers
  • Bumper bar with mounted spare wheel
  • 3500kg 50mm ball coupling with twin safety chains
  • Alloy Wheels
  • Insulated roof and walls
  • Double Glazed Windows with Integrated Blinds and Fly screens
  • Crimsafe Security Door
  • Checkerplate Protection to Front and Lower Sides
  • Rollout awning
  • Fold down picnic table
  • 3-Point Locking Security Door
  • Stylish Lightweight Aluminium Side Panelling with 3mm Composite Aluminium Front/Roof and Rear
  • Water tank gauge
  • 12V/USB Points to Bedside and Dinette
  • Reverse Camera Supplied with Vehicle Monitor
  • External TV Point
  • Fan-cooled, Two-door Fridge/Freezer
  • Radio with Ceiling Speakers
  • Washing Machine (All Models Except 196D Band 206DB)
  • 2 x 200 Watt Solar System
  • Microwave Oven
  • LED Striplights to Kitchen and Dinette Overhead cabinets
  • Gas Oven with Grill, Burners and One Electric Hotplate
  • External Marine Speakers
  • 24" Smart TV with Windup Roof Antenna
  • Truma Ultra Rapid Stainless-Steel Gas/Electric Hot Water system
  • 1 x BMPRO Battery Charger with 100Amp Deep Cycle Battery and Monitoring Screen
  • Reverse Cycle Air Conditioner
  • Dust Reduction Kit
  • Truma Gas Heater
  • External Pull-Out Kitchen
  • Lithium Battery
  • External Shower Tap Set
  • Hydraulic Lift Sliding Table
  • Grey Water Tank
  • Water Filter and Tap
  • 12V Oscillating Fans
  • RV Wifi
  • Auto Positioning Satellite Dish
  • Checkerplate Pull-Out Drawer to Tunnel Boot
  • ALKO Electronic Stability System
  • DC to DC Charger
  • Toolbox Fitted to A-Frame
  • Leather or Vegas Microfibre Upholstery Upgrade
  • 3mm Composite Aluminium Sides
  • LED Striplights to Lower Kitchen
